I. Introduction:

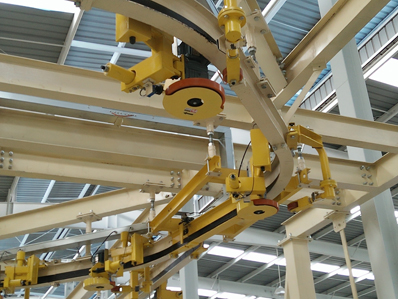

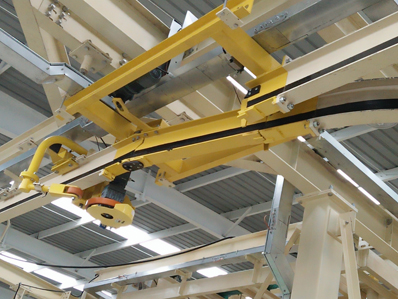

H type rail friction conveyor is a new type of automatic production and conveying equipment developed by our company on the basis of double channel steel track. It drives the load trolley and the connecting rod by friction wheel, thus pushing the load trolley to run and realizing the transportation and storage of the goods. According to the use, it can be divided into two forms: suspension and ground. According to the bearing capacity, it can be divided into 4H and 6h.
II. Main features of conveyors
1. Replace the chain drive with friction drive, which is stable and low noise.
2. It is an environmental protection type of conveying equipment that do not need lubrication and won’t pollute the environment
3 The conveying system is composed of independent driving units, with simple structure, flexible forms, quick replacement and convenient maintenance.
4. More advantages: simpler and more convenient unit production, faster construction and more cost savings.
5. It is widely used in automobile welding production line, coating production line, general assembly line, and other industries.
III. Main technical parameters of conveyors
1. Track: 4H: H beam 200x100; 6H: H-beam 250x125.
3. load trolley 4H: wheel Φ120, guide wheel Φ160, 6H: wheel Φ 160, guide wheel Φ 72.
4. Single vehicle load: 4H: 500kg; 6H: 1000kg
5. Connecting rod width: 4H: 50mm, 6h: 80mm
6. Drive wheel; diameter Φ320 and Φ360, polyurethane rim
7. Turnout Angle: 45°, Turning radius: R1000, R1500
8. Climbing angle: less than 6°
9. Speed :5~24 m/min or higher
10. Motor power of driving unit: 0.12~0.37KW. Or as the case.
