I. INTRODUCTION

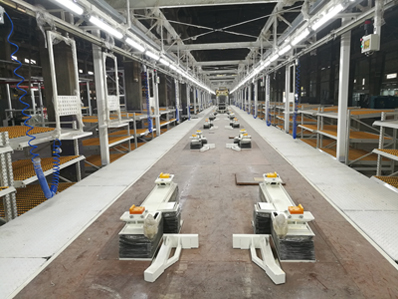

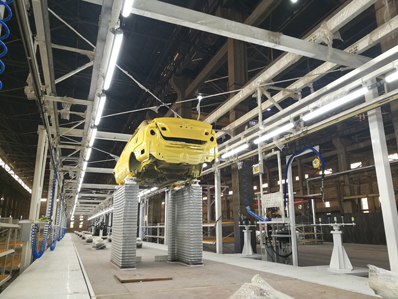

The lift slide conveyor is the rectangular conveying equipment with continuous horizontal movement and vertical adaptive lifting. It adopts friction drive technology and has the characteristics of high efficiency, energy saving, environmental protection, flexibility and expansibility.
Mainly used in automobile assembly workshop body interior assembly line.
II. Product features:
1. Group friction push: low noise, low energy consumption, easy maintenance and high efficiency.
2. Rectangular horizontal layout: good process planning, strong adaptability of supporting equipment, simple logistics transportation and comfortable equipment environment.
3. Flexibility and intelligence: the work station automatically and intelligently rise and fall to meet the flexible online adaptive transformation of multiple vehicle models and processes.
4. Easy operation, low failure rate and low maintenance cost.
5. Building block structure: easy transportation, installation, convenient maintenance and replacement.
6. The product is harmonious
III. Main performance parameters of the product:
1. Single-line capacity: 300,000 vehicles/year
2. Installed capacity: 80KWh
3. Rated load of single side plate: 2000kg
4. Lifting stroke: 100-1100mm
5. Conveying speed: 1 ~ 7.5m/min
