First, the customer name:
Shanxi New Energy Automobile Co., Ltd.
Second, the project profile:
1. Scope of supply: belt type roller conveyor equipment (WBS), welding adjustment line (plate type conveyor chain), etc., including design, production, installation and commissioning.
2. Project introduction:

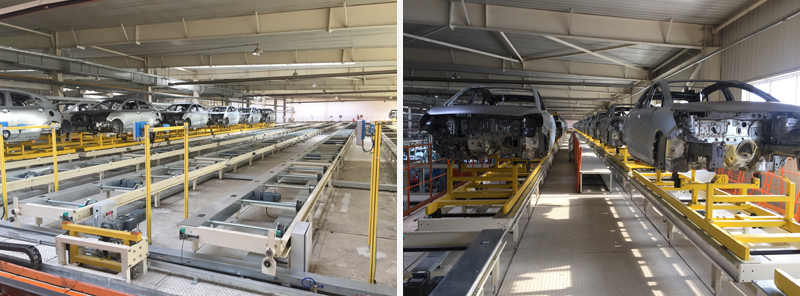

Jinzhong Jili welding skid conveyor line includes: welding to painting factory belt roller conveyor equipment (WBS), welding adjustment line (plate conveyor chain). The main equipments are lifts, stacking and unloading, fork shifting and so on. The conveyor line is equipped with CS control system and AVI information system to realize real-time monitoring of field equipment, vehicle body scheduling, fault alarm and other functions.
The main parameters:
Production capacity: 100,000 units
Product: The production line passes the maximum body-in-white size: L×W×H: 4680×1790×1482 (mm)
The workshop production line passes the maximum body-in-white weight: 500Kg/set.
Production program: 30JPH, 2 shifts; 300 days / year
Production mode: continuous through production line
Conveyor line form: belt sled conveyor line
