First, the customer name:
Brilliance Auto Group Holdings Limited
Second, the project profile:
1. Scope of supply: open storage, body storage, main body production line elevators and body adjustment lines, etc. and their control parts
2. Project introduction:

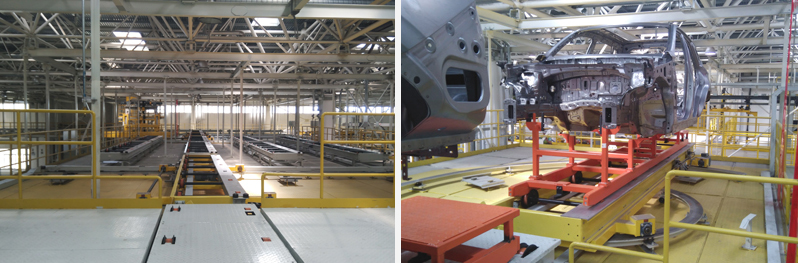

Brilliance Automotive Group Holdings Co., Ltd. Brilliance welding and sliding conveyor production line, this conveyor production line includes: open space storage, body storage, main body production line elevators and body adjustment lines, etc., and finally pass the qualified body to the painting through the transfer station workshop. The conveyor line is equipped with a CS control system to realize real-time monitoring of field devices, vehicle storage area access vehicle scheduling, equipment failure alarm prompts and other functions. Through the analysis and arrangement of logistics information, vehicle information management has been realized.
The main parameters:
Production capacity: 120,000 vehicles
Product: Production line through the body-in-white size: L × W × H: 4500 × 2000 × 1500 (mm)
The workshop production line passes through the body-in-white weight: 500Kg/set.
Production program: 40JPH, 3 shifts/day, equipment operation rate: 90%
Production mode: continuous through production line
Conveyor line form: skid conveyor line
